Orthopedic adbone®BCP

Composition

100% Synthetic

25 % β-TCP + 75% HAp

Porosity

70%

Pore Size: 1 – 400 microns

Description

POROUS SYNTHETIC BONE BIOMATERIAL
adbone®BCPis a totally synthetic biphasic bone graft material made
of 75% of hydroxyapatite (HAp) and 25% of beta-tricalcium
phosphate (β-TCP).
THREE DIMENSIONAL REGENERATION OF BONE
adbone®BCP features a multidirectional interconnected porosity that guides the three-dimensional regeneration of the bone.
As the bone healing process occurs, adbone®BCP is resorbed and replaced by new bone. Due to its composition, adbone®BCP presents a biphasic resorption.
HIGHEST DEGREE OF POROSITY
adbone®BCP was designed to achieve the highest degree of porosity
without compromising the mechanical resistance.
Granules & Crunch
Block
Cylinder
Wedge

Composition

75%

Hydroxyapatite
75%

25%

Tricalcium Phosphate
20%

Porosity

70%

adbone
80%

45%

Others
45%

Pore Size

400μm

adbone
80%

50μm

Others
10%

Mechanical Resistance

3,0 MPa

adbone
80%

0,5 MPa

Others
20%
adbone®BCP has been designed to imitate natural bone

Characteristics

Easy to handle
adbone®BCP can be easily mixed with patient blood or autologous bone marrow. The hydrophilic behavior of adbone®BCP confers a high cohesivity of the particles
Totally synthetic
adbone®BCP does not contain animal or human tissues or derivatives
Vascularization
The interconnected porosity of adbone®BCP forms an ideal
environment for vascularization
Radiopaque
adbone®BCP is radiopaque, allowing the monitorization of the graft osteointegration

Indications

Traumatology
Upper and lower limps.
Spinal surgery
Cage filings;
Posterolateral fusions.
Bone cavity filing
Cysts;
Bone tumors.
Extremities
Hand and foot surgery.
Craniofacial surgeries
Cranioplasty;
Cranial recontouring;
Cranial flap augmentation;
Skull base defect repair.
Sports Surgeries
Knee surgery;
Elbow surgery;
Shoulder surgery.

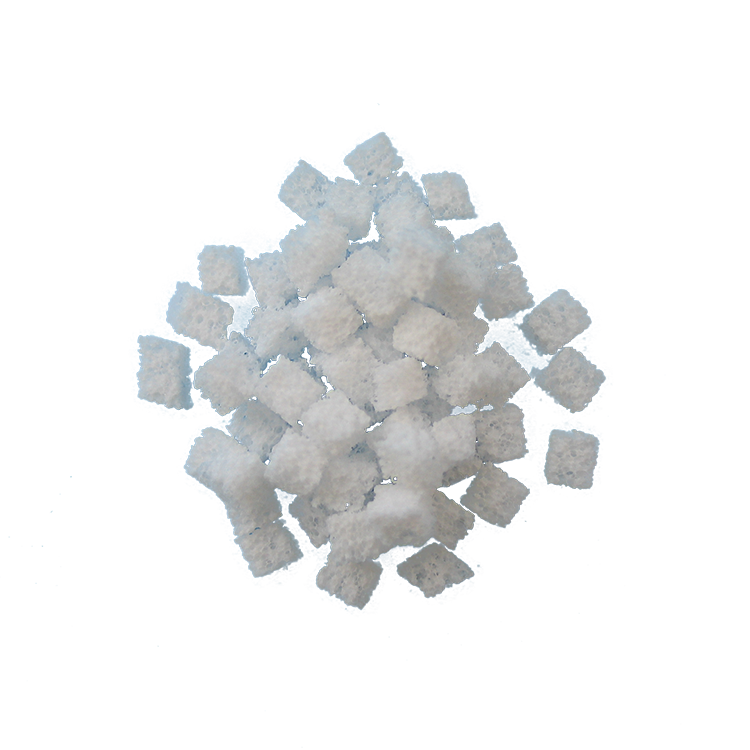

Granules and Crunch

REFERENCES GEOMETRY RANGE SIZE QUANTITY
BCP010510P Granules 0.1 – 0.5 mm 1g x 5 Units
BCP050110P 0.5 – 1 mm
BCP010210P 1 – 2 mm
BCP030405G 3 – 4 mm 5g x 1 Unit
BCP030410G 10g x 1 Unit
BCP030415G 15g x 1 Unit
BCP030420G 20g x 1 Unit
BCP030430G 30g x 1 Unit
BCP040705G Crunch 4 – 7 mm 5g x 1 Unit
BCP040710G 10g x 1 Unit
BCP040715G 15g x 1 Unit
BCP040720G 20g x 1 Unit
BCP040720G 30g x 1 Unit
Other references and geometries are available upon request.

Blocks, Cylinders and Sticks

REFERENCES GEOMETRY RANGE SIZE QUANTITY
BCP080820B Block 8 x 8 x 20 mm 1 Unit
BCP151520B 15 x 15 x 20 mm 1 Unit
BCP152030B 15 x 20 x 30 mm 1 Unit
BCP080820C Cylinder 8 x 8 x 20 mm 1 Unit
BCP040420F Stick 4 x 4 x 20 mm 5 Units
BCP040420Q 4 x 4 x 20 mm 4 Units
Other references and geometries are available upon request.

Wedges

REFERENCES GEOMETRY RANGE SIZE QUANTITY
BCP062530W Wedge 6 x 25 x 30 mm 1 Unit
BCP082530W 8 x 25 x 30 mm 1 Unit
BCP102530W 10 x 25 x 30 mm 1 Unit
BCP122530W 12 x 25 x 30 mm 1 Unit
BCP142530W 14 x 25 x 30 mm 1 Unit
Other references and geometries are available upon request.

adbone®BCP is intendend to be used as a bone void filler or augmentation material for bone defects that are not intrinsic to the stability of the bony structure:
