Orthopedic adbone®TCP

Composition

Synthetic

β-TCP

Porosity

80%

Pore Size: 300 – 500 microns

Description

POROUS SYNTHETIC BONE BIOMATERIAL
adbone®TCP is a totally synthetic bone graft material made of pure
beta-tricalcium phosphate (β-TCP).
THREE-DIMENSIONAL REGENERATION OF THE BONE
adbone®TCP features a multidirectional interconnected porosity that
guides the three-dimensional regeneration of the bone. As the bone healing process occurs, adbone® is resorbed and replaced by new bone.
HIGHEST DEGREE OF POROSITY
adbone®TCP was designed to achieve the highest degree of porosity
without compromising the mechanical resistance.
Granules & Crunch

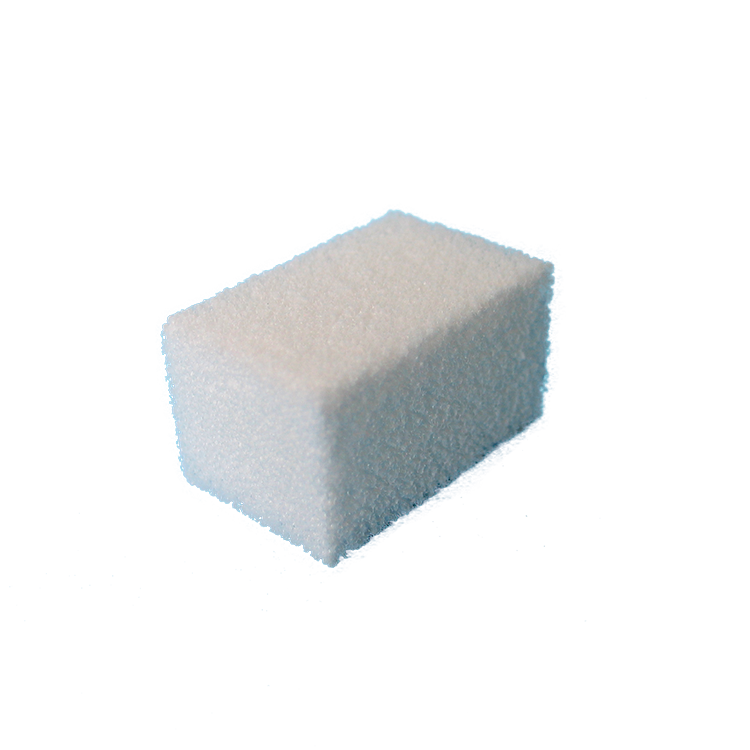

Block

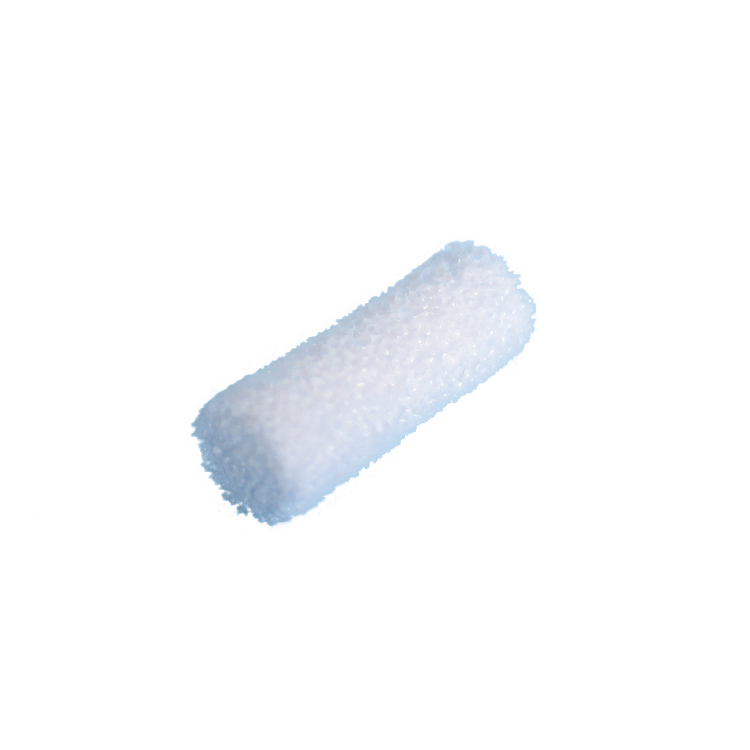

Cylinder
Wedge

Porosity

80%

adbone
80%

45%

Others
45%

Pore Size

400μm

adbone
80%

50μm

Others
10%

Mechanical Resistance

3,0 MPa

adbone
80%

0,5 MPa

Others
20%
adbone®TCP has been designed to imitate natural bone

Characteristics

Easy to handle
adbone®TCP can be easily mixed with patient’s blood or autologous bone marrow. The hydrophilic behavior of adbone®TCP confers a high cohesivity of the particles
Totally synthetic
adbone®TCP does not contain animal or human tissues or derivatives
Vascularization
The interconnected porosity of adbone®TCP forms an ideal environment for vascularization
Radiopaque
adbone®TCP is radiopaque, allowing the monitorization of the graft osteointegration

Indications

Traumatology
Upper and lower limps.
Spinal surgery
Cage filings;
Posterolateral fusions.
Bone cavity filing
Cysts;
Bone tumors.
Extremities
Hand and foot surgery.
Craniofacial surgeries
Cranioplasty;
Cranial recontouring;
Cranial flap augmentation;
Skull base defect repair.
Sports Surgeries
Knee surgery;
Elbow surgery;
Shoulder surgery.
REFERENCES GEOMETRY RANGE SIZE QUANTITY
TCP010510P Granules 0.1 – 0.5 mm 1g x 5 Units
TCP050110P 0.5 – 1 mm
TCP010210P 1 – 2 mm
TCP030405G 3 – 4 mm 5g x 1 Unit
TCP030410G 10g x 1 Unit
TCP030415G 15g x 1 Unit
TCP030420G 20g x 1 Unit
TCP030430G 30g x 1 Unit
TCP040710G Crunch 4 – 7 mm 5g x 1 Unit
TCP040715G 10g x 1 Unit
TCP040715G 15g x 1 Unit
TCP040715G 20g x 1 Unit
TCP040715G 30g x 1 Unit
Other references and geometries are available upon request.
REFERENCES GEOMETRY RANGE SIZE QUANTITY
TCP080820B Blok 8 x 8 x 20 mm 1 Unit
TCP151520B 15 x 15 x 20 mm 1 Unit
TCP152030B 15 x 20 x 30 mm 1 Unit
TCP080820C Cylinder 8 x 8 x 20 mm 1 Unit
TCP040420F Stick 4 x 4 x 20 mm 5 Units
TCP040420Q 4 x 4 x 20 mm 4 Units
Other references and geometries are available upon request.
REFERENCES GEOMETRY RANGE SIZE QUANTITY
TCP062530W Wedge 6 x 25 x 30 mm 1 Unit
TCP082530W 8 x 25 x 30 mm 1 Unit
TCP102530W 10 x 25 x 30 mm 1 Unit
TCP122530W 12 x 25 x 30 mm 1 Unit
TCP142530W 14 x 25 x 30 mm 1 Unit
Other references and geometries are available upon request.

adbone®TCP is intendend to be used as a bone void filler or augmentation material for bone defects that are not intrinsic to the stability of the bony structure:

Hotspot image

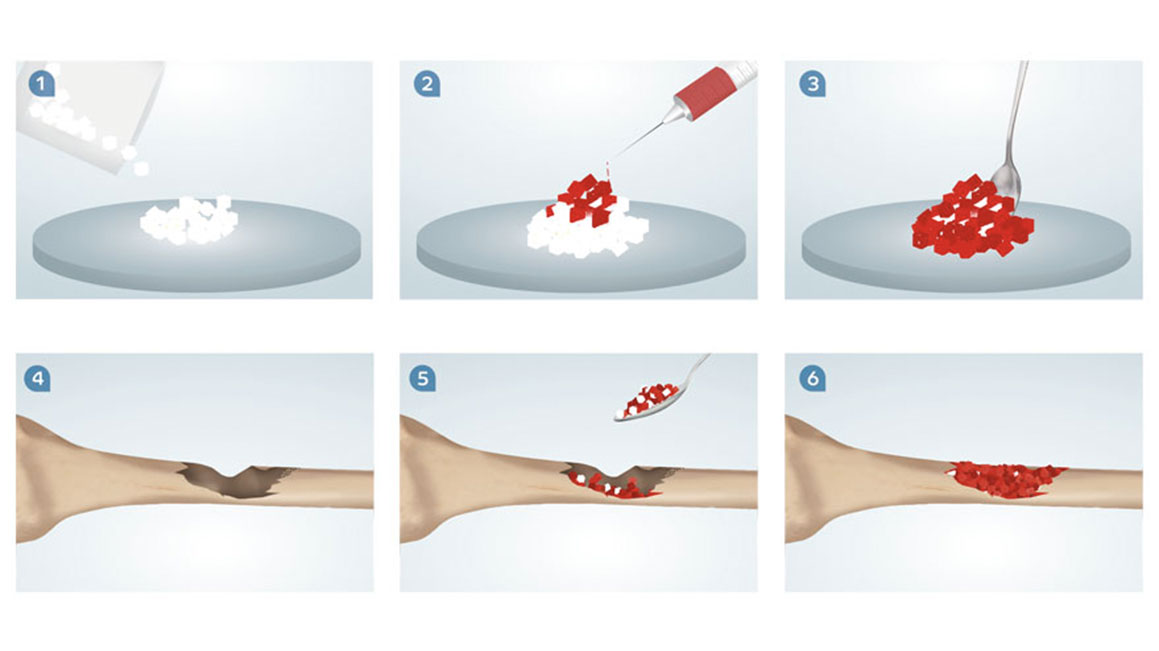

EASY HANDLING
